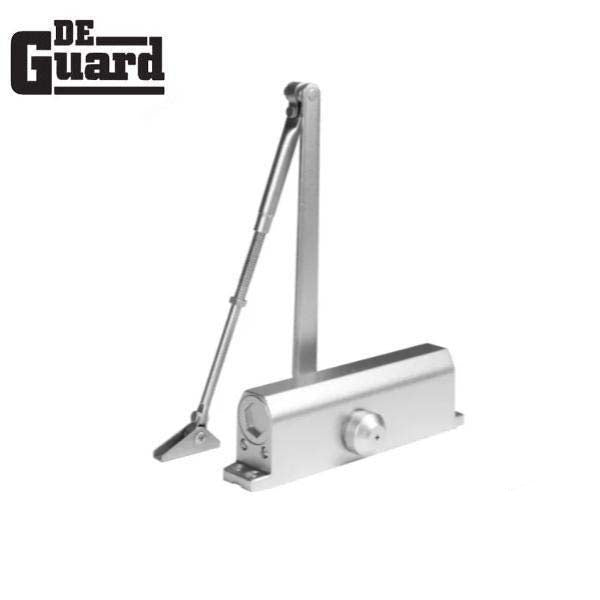

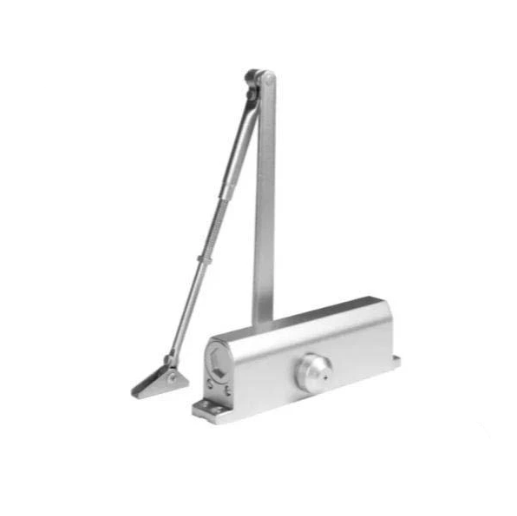

Hydraulic Door Closer - Back Check Function - Hold to Open - PA Bracket/Regular/Top Jamb - Adjustable Size 1-6 - Plastic Cover - Satin Nickel - Grade 1

• Recommended type for Fire Door
• Meet with ANSI 156.4 Grade 1, 10 years Guarantee, 2 Million Life Cycles.
• Multi-size, Adjustable Spring force from 1-4, 3-6, 1-6
• Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.
• Needle Bearing
• Back Check with Hold to Open Functionality
• Optional Delay Action and Slim/Full Plastic Cover
• ADA: 5014, 5016 with Barrier Free (BF) Function for elderly/handicapped
• Universal application. Non-handed for standard, top jamb or parallel arm installation
• Finish: Satin Nickel

Cross-References:

Downloads:

• Installation Manual
• Drill Template
