Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.
More Details Below:
Specs
Certifications
BHMA Certified ANSI A156.4, adjustable sizes 1-6
ADA compliant ANSI A117.1 Accessibility Code
UL/cUL Listed for up to 3 hours
UL10C Positive Pressure Rated
UL10B Neutral Pressure Rated
5300 Door Closer EPD
Material
Aluminum Alloy
Arms and Brackets
Tri-Pack - regular, top jamb, and parallel arms - Standard
15% power adjustment in standard arm for regular and top jamb mount
Cover
Full plastic cover and pinion cap
Door Thickness
1-3/4" (44 mm)- standard
1-3/8" - 2-1/4" (36 mm - 57 mm) - optional
Fasteners
Self-reaming, self-tapping wood and machine screws
Sex nuts and bolts
Handing
Non-handed
Maximum Door Weight
250 lbs
Notes
To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.
The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
Accessories may not be available in all finishes. Please contact Hager for availability and lead time.
Optional Arms
Tri-Pack Arm (Regular, Top Jamb and Parallel with Parallel Arm Bracket)- Standard
Hold Open Arm (HO) - 5910
Pull Side Stop Arm (PSS) - 5926
Pull Side Hold Open Stop Arm (PSHOS) - 5927
Extra Heavy Duty Arm - (HD) - 5911
Extra Heavy Duty Stop Arm ( HDS) - 5907
Extra Heavy Duty Hold Open Stop Arm (HDHOS) - 5906
Extra Heavy Duty Hold Open Arm (HDHO) - 5912
Extra Heavy Duty Cushion Stop Arm (HDCS) - 5957
Extra Heavy Duty Hold Open Cushion Stop Arm (HDHOCS) - 5956
Hold Open Stop Track Arm (HOTA)
Non-Hold Open Stop Track Arm (NHOTA)
Double Egress Hold Open Track Arm (DEHOTA)
Double Egress Non-Hold Open Track Arm (DENHOTA)
Optional Brackets
Hold open parallel arm bracket
Extra clearance parallel arm bracket
Product Description

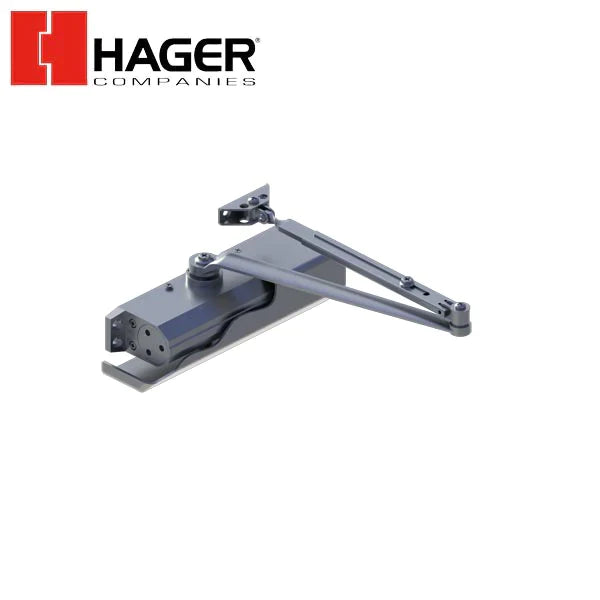

Grade 1 Heavy Duty Door Closer
Springs
One piece seamless steel spring tube
Double heat-treated, steel-tempered springs
Precision-machined, heat-treated steel piston
Use
Ideal for schools, hospitals, and other high-use environments
Valves
Adjustable backcheck, sweep, and latching valves- standard
