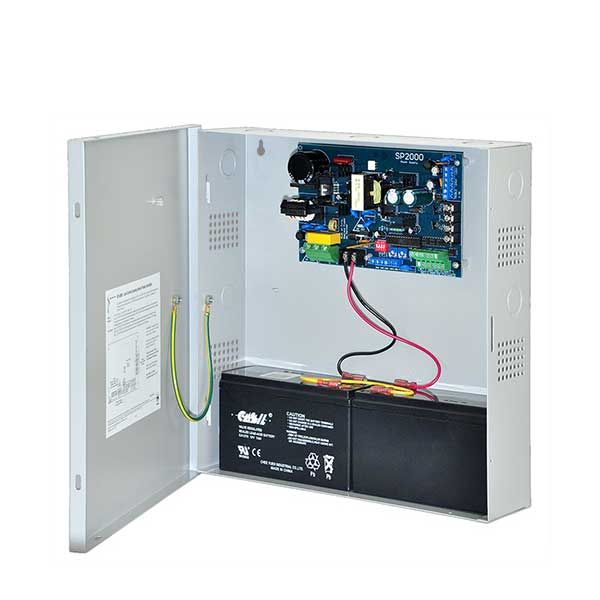

First Choice - PSMEL2000 - Two Door Power Supply / Exit Devices - 12/24V - 1 AMP

First Choice - PSMEL2000 - Two Door Power Supply / Exit Devices - 12/24V - 1 AMP

First Choice

$544.50 USD
$762.30 USD $544.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-FCH-PSMEL2000

Smart Self-Diagnosing Power Supply PSMEL200 Operates a pair of doors with two low current exit devices simultaneously or independently control two single door leaf's.

  • Shall operate up to two (2) 24VDC panic hardware devices simultaneously
  • Each lock output shall have an adjustable relock delay timer
  • It shall control a pair of doors simultaneously or independently two doors
  • Relay for each output to trigger external relays, ADA push plate switches, etc.
  • Delayed follower relays shall control automatic door operators for doors that are always locked or for doors that are unlocked during the business day
  • Two un-switched auxiliary voltage outputs shall provide/remove power to the lock outputs when activated
  • A programmable FACP interface shall provide power/remove power to the lock outputs when activated
  • Shall have LED status indicators monitor AC, FACP status & for lock output wiring supervision
  • Intelligent logic shall provide protection against accidental shorting of lock outputs

Specifications

Smart Visual Indicators • Output 1 & 2 = Red (ON) input LEDs indicate panic device status is energized (rapid blink/short or over current) (slow blink/open circuit)
• FAI = Green (ON) FACP Input Triggered (Alarm Condition)
• Battery Trouble = Red (ON) Battery Normal (slow blink/bad battery or no battery)
• AC Trouble = Green (ON) AC normal (slow blink/AC low or missing)
Visual Indicators
 • Output 1 (On/Over/Open)
• Output 2 (On/Over/Open)
• FAI (On/Off)
• Battery (On/Off)
• AC Trouble (On/Low or Missing)
• AC Power (On/Off)
Battery Backup • Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails
• Maximum charge current .65 amps
• 4AA batteries will make emergency stand-by at least 30 minutes
Input • Input 115VAC 60Hz, 2.5 amp or 230VAC, 50Hz, 1.5 amps
• Two (2) N.O. Trigger Inputs
Outputs • Two (2) 24 VDC individually controlled lock outputs rated @ 1 amp each. Load connected not to exceed 1 amp.
• One (1) 24VDC @ .08 amps filtered regulated auxiliary output. (Not affected by FACP trigger)
• One (1)12 VDC @ .05 amp filtered regulated auxiliary output. (Not affected by FACP trigger) Note: Total combined current for the 24VDC outputs may not exceed 1.75 amp.
• Two (2) follower N.O. outputs for controlling ADA actuators/ accessories
• Two (2) momentary operator activation outputs
• Trouble output relay for indicating low/AC Voltage and battery trouble.
Dimensions 13" x 12.5" x 3.5" (H x W x D)
Code / Agency Listings • UL File for Access Control Systems Units (UL 294)
• CUL Listed – CSA Standard C22.2 No. 205-M983, Signal Equipment's
• CSFM – California State Fire Marshal Approved
