First Choice - PSMEL1500-1 - Single Motorized Panic Device Power Controller - 12/24V - 1 AMP
First Choice - PSMEL1500-1 - Single Motorized Panic Device Power Controller - 12/24V - 1 AMP
First Choice
Precio habitual
$229.90 USD
Precio habitual
$302.50 USD
Precio de oferta
$229.90 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-FCH-PSMEL1500-1

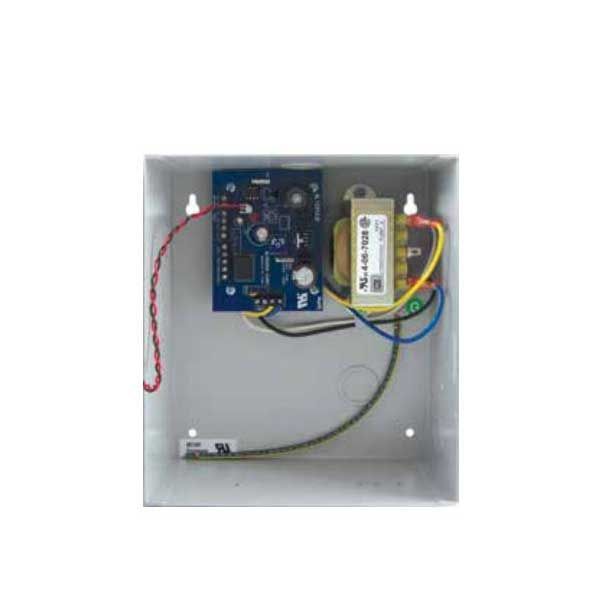

The PSMEL1500 Operates one door and one low current exit device.
- PSMEL1500 shall operate up to one (1) 24VDC panic hardware device.
- In addition, an auxiliary power output shall provide power for accessory devices such as card readers, key-pads, REX PIRs, electronic timers, relays, etc.
Specifications
| Visual Indicators |
• Green AC Power LED indicates 115/AC present • Red LED indicates presence of 24VDC |
| Battery Backup | • Built-in charger for sealed lead acid or gel type batteries • Automatic switch over to stand-by battery when AC fails • Maximum charge current .4 amps • 4AA batteries will make emergency stand-by at least 30 minutes |
| Input |
• Input 115VAC 60Hz, 2.5 amp or 230VAC, 50Hz, 1.5 amps • One (1) N.O. Trigger Inputs |
| Outputs | • 12 VDC or 24VDC selectable outputs • 1 amp supply current • One (1) Fail-Safe (lock +) supplies power when unit is not being triggered • One (1) Fail-Secure (strike +) supplies power when unit is being triggered • (Com –) supplies negative power |
| Dimensions | 8.5" x 7.5" x 3.5" (H x W x D) |
| Code / Agency Listings | • UL File for Access Control Systems Units (UL 294) • CUL Listed – CSA Standard C22.2 No. 205-M983, Signal Equipment's • CSFM – California State Fire Marshal Approved |
