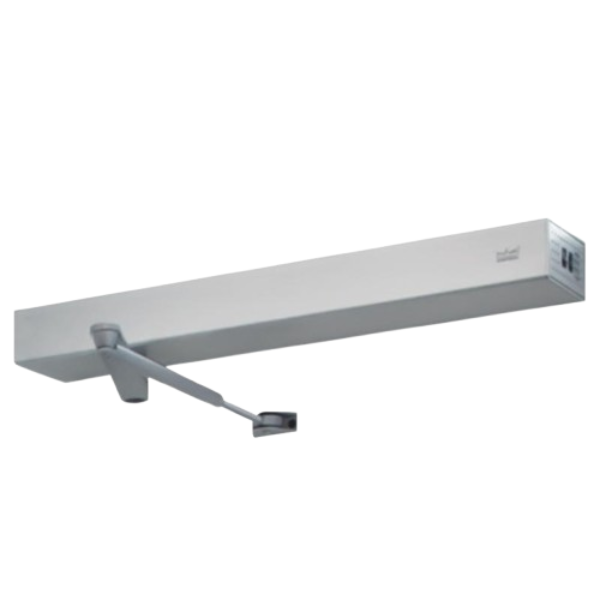

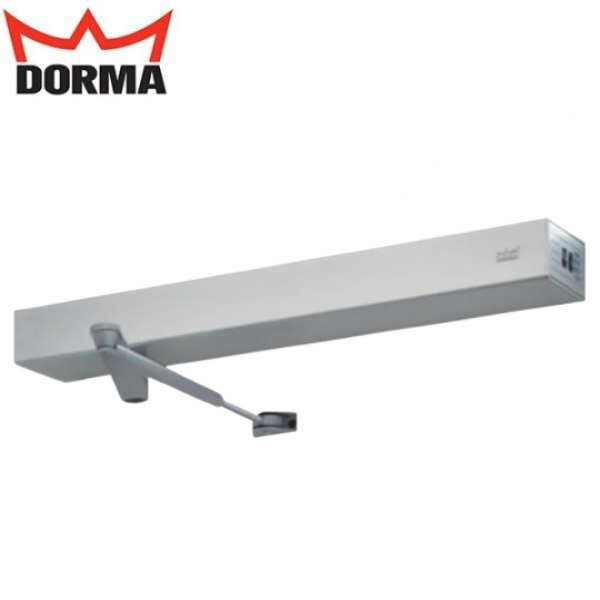

DORMA - ED900-J8-SW-689 Grade 1 Low-Energy Surface-Mounted Electromechanical Door Operator, 110° Powered, 180° Manual, Aluminum Finish

The DORMA ED900-J8-SW-689 is an advanced surface-mounted swing door operator with a low-energy, electromechanical drive system. It features microprocessor-based motion control to ensure smooth, precise door operation with minimal physical effort. This model is specifically engineered for both automated and manual door usage. The ED900 is exceptionally quiet and includes advanced power assist, making heavy doors feel almost weightless when opened manually.

Features:

• Advanced power assist: When operated manually, the ED900 demands little physical effort. Advanced power assists through the entire opening cycle makes even the heaviest-rated door feel light.
• Fully ADA compliant: The operator is especially helpful for children, the elderly, persons with disabilities, or those carrying objects or pushing carts. This fully ADA-compliant device opens doors at precisely controlled speeds and forces, assuring safety for all users.
• Advanced features: The ED900 also includes a blow-open feature for smoke ventilation (per NFPA code 92B), permanent hold-open, and an onboard power supply delivering 1.5 amps @ 24-volt DC, which eliminates the need for a secondary power supply. It includes twelve programmable options to accommodate even the most challenging door installations.
• Small footprint: The ED900 low energy operator boasts the smallest footprint in the industry, up to 65 percent smaller than some other manufacturers’ operators.
• Onboard Power Supply: Delivers an unprecedented 1.5 amps @ 24 VDC: 3× more power than the competition. No need for a separate power supply.

Specifications:

Downloads:

• Catalog
• Installation Instructions
