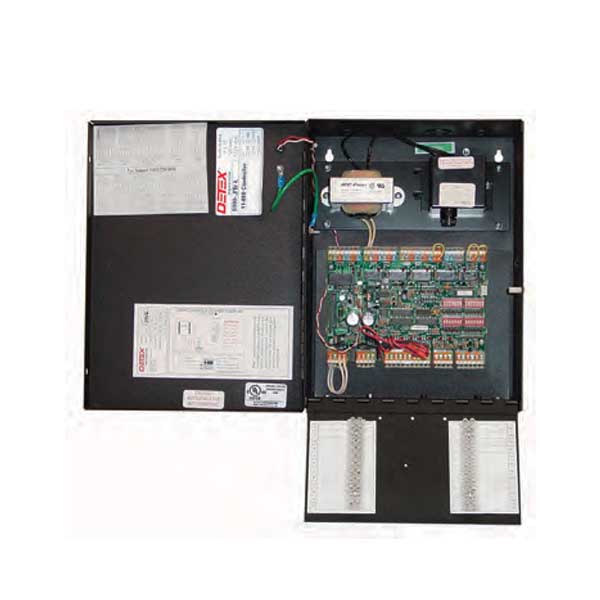

Detex - 11-800 - Power Control System - 120VAC/24VDC - 24 Point Terminal Strip

Detex - 11-800 - Power Control System - 120VAC/24VDC - 24 Point Terminal Strip

Detex

Precio habitual $1,007.33 USD
Precio habitual $2,055.79 USD Precio de oferta $1,007.33 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-DTX-11-800

The Detex 11-800  is a universal logic and power supply controller that allow for total control over all electrified hardware. The controller receives input from a switch, access control or any dry contact device and processes it into the desired output. One controller can manage applications for up to two doors, such as standard egress, delayed egress and interlocks. All connections for local or remote signaling are contained in one box. The 11-800 logic controller provides at least 2A of DC power at the door. A battery backup/charging circuit is standard with each controller to deliver an
uninterrupted source of power for up to 4 hours (battery sold separately)

24 point terminal strip and flip down tray included with the 11-800

  • Central terminal connections provide easy wiring
  • Inline fuse protects against power surges
  • Designed specifically to support electric locks, access control systems and delayed egress systems
  • Multiple fire alarm relay input options assure compliance to various life safety codes • On/Off switch allows for easy service and inspection
  • Power supply and controller all in one box • Controls up to 2 separate doors for standard egress or 2-door interlock applications
  • 1 controller required for each independent delayed egress application
  • Output relays for locks, local alarm and remote alarms • Relays may be configured to wet or dry connections
  • Status LED's toggle on or off for easy troubleshooting
  • Connections are labeled with either numbering scheme or label with text to identify circuits
  • Single AC line voltage required to activate
  • Dual voltage selection (12/24VDC)
  • 9VDC, 100mA output terminal tap
  • Fuse protection
  • Battery backup circuit - standard
  • Pre-wired terminal strip with labels for easy identification (11-800)

Input

110VAC input
Output 12 or 24 VDC output, 2A
Lock Amperage Lock Relay 2A
Remote Amperage Remote Relay 2A
Application Controls 2 doors within 100 feet using 18ga stranded wires
Switch Bolt Position /Door Position Switches Relay 2A
Local Alarm Local Alarm Relay 5A
Dimensions 9-1/4” x 4-1/16” x 12-1/4”
