Command Access - Request-to-Exit Switch - Von Duprin 33/35/98/99 Series Exit Device - SPDT

Command Access - Request-to-Exit Switch - Von Duprin 33/35/98/99 Series Exit Device - SPDT

Command Access

$48.35 USD
$58.07 USD $48.35 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-CAT-VDREXKIT-ED

Field Installable Request-to-Exit switch for Von Duprin 33/35/98/99 Series Exit Device. The kits easy drop-in installation adds a switch that sends a signal to alert the control panel that the door is about to be opened by someone exiting from within the secured area. The switch is SPDT (single pull, double throw)

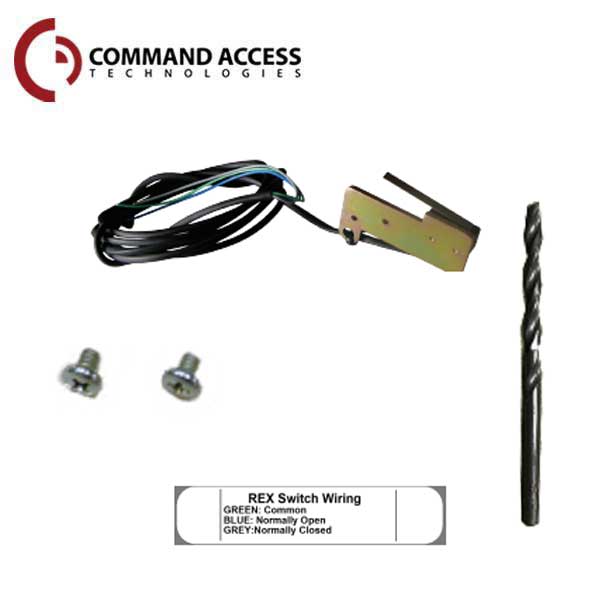

Includes:

  • REX Label
  • REX Switch
  • 2 - Phillips Screws
  • 9/64 drill bit


Specifications:

Function: Request-to-Exit REX Switch. SPDT
Series: 33/35/98/99 Series
Lock Type:  Exit Device
Type: Single Pull Double Throw SPDT
Rating: .5A or 24VAC / VDC
Configuration: Green - Common (C)
Blue - Normally Open (NO)
Gray - Normally Closed (NC)
Warranty: 3 Year Manufacturer's Warranty
