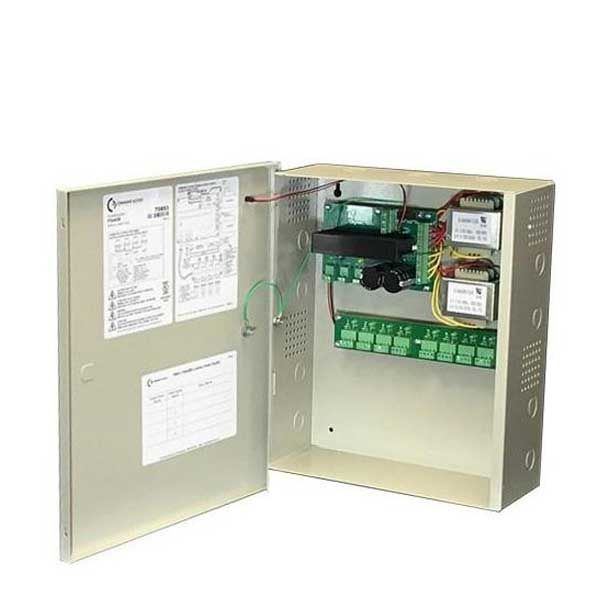

Command Access - PS480B - Power Supply - 4 Amp - 24VDC - Battery Backup
Command Access - PS480B - Power Supply - 4 Amp - 24VDC - Battery Backup
Command Access
Precio habitual
$331.49 USD
Precio habitual
$355.74 USD
Precio de oferta
$331.49 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-CAT-PS480B
The PS480B power supplies input 110-120VAC and deliver (4) amps @ 24VDC to (8) PTC fused outputs. It also provides (8) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid and motor driven exit devices, electric locks, electric strikes, and mag locks.
Features:
- Built to run up to 8 locks, exit trim & lp motor/solenoid kits
- Robust solid-state outputs - Protects system relays
- Rock-solid board design improves reliability
- Built to last in the USA
- Linear design ensures ample inrush/ hold current for latch retraction
- Door mounted LED Power Indicator
- Interruption free battery back-up
- Easy to remove euro connectors
Specifications:
| Input Voltage: | 120 VAC, 60 Hz, • Input Fuse: 2 Amp Fuse @ 250VAC |
| Output Voltage: | 4A @ 24VDC • 8 Solid State I/O’s - .75A auto resetting fused outputs • |
| Fire Alarm: | Fire alarm link |
| Electrical: | Temperature range: 0 to 49° C; 32 to 120° F • Maximum humidity: 85% |
| LED’s: | Red = A/C Power indicator • Green = D/C Output indicator • Orange = Battery Output Indicator |
| Battery Backup: | Regulated, independent battery charging • Automatic uninterrupted backup circuit • Battery cables included • Requires (2) 12VDC 7AH batteries • Batteries not included |
| Dimensions: | 13” W x 15.5” H x 5” D |
| knockouts: | 1/2” & 3/4” |
| Hinge-less removable cover: | Cam lock not provided |
| Operating Voltage: | 24VDC |
| UL294 (6e) Security Levels: | Destructive Attack: Level I Line Security: Level I Endurance: Level IV Standby Power: Level I |
| Rated Power: | Class 2 Rated power limited output |
| Listings: | UL294 6th Edition |
| Warranty: | 3-Year Manufacturer Warranty |
