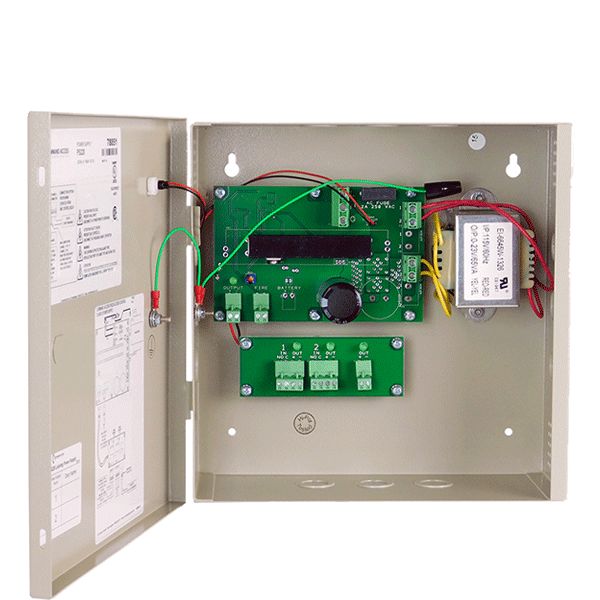

Command Access - PS220 - Power Supply - 2 Amp - 24VDC

Command Access - PS220 - Power Supply - 2 Amp - 24VDC

Command Access

Precio habitual $204.31 USD
Precio habitual $234.74 USD Precio de oferta $204.31 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-CAT-PS220

The PS220/220B power supplies input 110-120VAC and deliver (2) amps @ 24VDC to (2) PTC fused outputs. It also provides (2) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid and motor driven exit devices, electric locks, electric strikes, and mag locks.

Features:

  • Built to run up to 2 locks, exit trim & lP motor/solenoid kits
  • Robust solid-state outputs - Protects system relays
  • Rock-solid board design improves reliability
  • Built to last in the USA
  • Linear design ensures ample inrush/ hold current for latch retraction
  • Door mounted LED Power Indicator
  • Easy to remove euro connectors


        Specifications:

        Input Voltage: 120 VAC, 60 Hz, • Input Fuse: 2 Amp Fuse @ 250VAC
        Output Voltage: 2A @ 24VDC • 2 Solid State I/O’s - 1 A auto resetting fused outputs • Power tap: .5A @ 24VDC • Over-voltage protection • Output Voltage trim pot
        Fire Alarm: Fire alarm link
        Electrical: Temperature range: 0 to 49° C; 32 to 120° F • Maximum humidity: 85%
        LED’s: Red = A/C Power indicator • Green = D/C Output indicator
        Dimensions: 11” W x 11” H x 4” D
        knockouts: 1/2” & 3/4”
        Hinge-less removable cover: Cam lock not provided
        Operating Voltage: 24 VDC
        UL294 (6e) Security Levels: Destructive Attack: Level I Line Security: Level I Endurance: Level IV Standby Power: Level I
        Rated Power: Class 2 Rated power limited output
        Warranty: 3-Year Manufacturer Warranty
