Command Access - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC
Command Access - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC
Command Access
Precio habitual
$130.02 USD
Precio habitual
$186.34 USD
Precio de oferta
$130.02 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-CAT-PM300

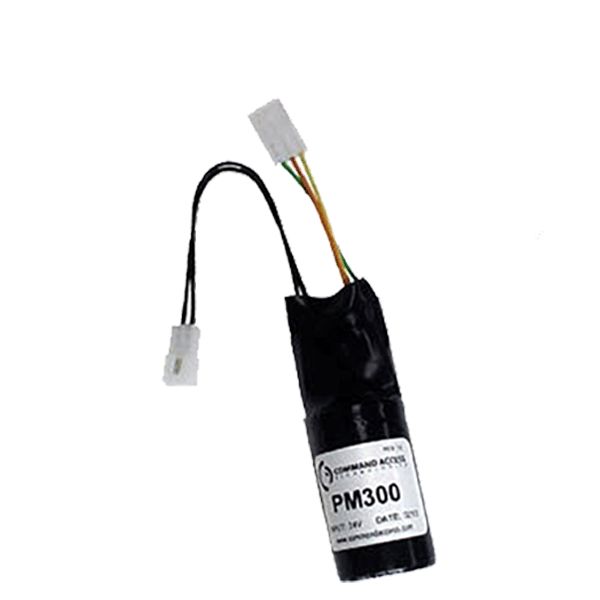

The patented PM300 (taking over from all PM200 and PWM200 units) power booster module is an interface module that connects between the solenoid circuit of a latch-pullback exit device and the power supply.
Features:
- Allows a solenoid-driven exit device to be used with a lower-cost power supply
- Gives a needed boost to an anaemic power supply/exit device installation
- Allows a wire run from the power supply to the exit device of up to 700’ with 18/2 wire (see below)
- PM300 compatible with most 24VDC 1.5A or greater regulated power supplies.
- Built high output switch for added power when using Command Access power supplies*
- Solid-state design with high-quality components make for years of trouble-free operation
- Built-in safety feature that protects module for over-voltage
- Patented Technology
Specifications:
| Construction | Solid-state design with high-quality components make for years of trouble-free operation |
| PM300 Input Voltage Range: | 22-30 VDC Filtered & Regulated Voltage |
| Dimensions: | Tubular 3.5” L x 1.25” W |
| Standard Mode: | Fuse: Glass - 3.5 to 5A • Resetable - 1.0 Amp trip Relay: 5A or greater |
| High Output Mode: | Fuse: Resetable - 2.0Amp trip, 1.1Amp hold (minimum) Relay: 10A or greater |
| Maximum Wire Runs: | 700’ with 18ga wire • 1000’ with 16ga wire |
| Operating Voltage: | 22-30 VDC |
| Warranty: | 3-Year Manufacturer Warranty |
