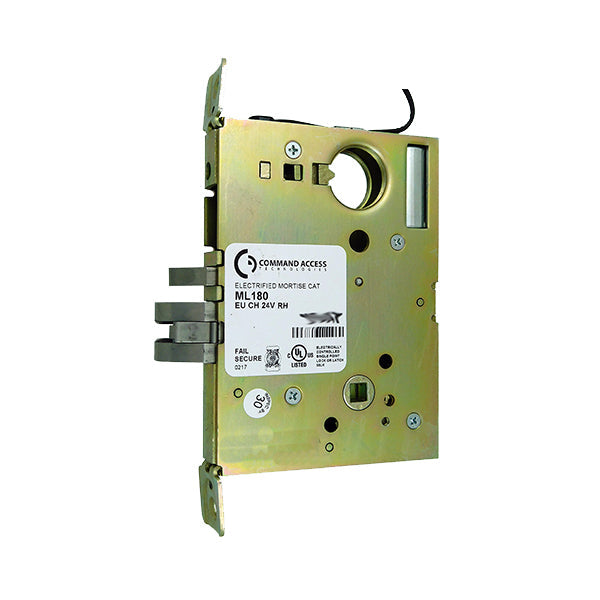

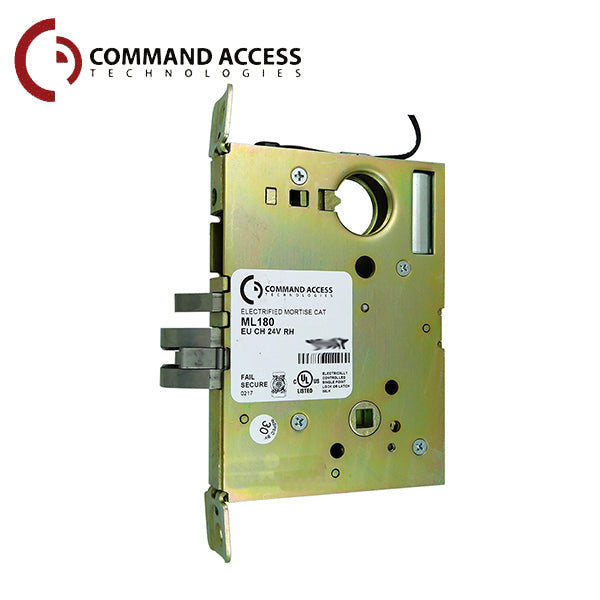

The Command Access ML180 (L9000) retrofit series mortise lock utilizes a high quality Grade 1 chassis that is built to withstand years of use. You can install this lock with the confidence of knowing that the ML1 carries our top tier features, options, and specifications. Compatible with any Schlage L9000 series.
Features:
- Electrified Mortise Lock
- Storeroom Function
- Retrofits Schlage L9000 series
- Fail Secure
- Continuous duty solenoids allow for “continuously on” applications
- Plug-in bridge rectifier that allows for an AC or DC power source supplied with all locks
- Low current draw
- Handing Field Reversible
Specifications:
| Lock Function: | EU - Fail Secure - Electronically Unlocked - Storeroom Function |
| Handing: | Non-Handed |
| Backset: | 2-3/4" |
| Latch: | 3/4" Throw |
| Dimensions |
10.5” x 3.75”: x 2.5” |
| Weight | 3 Lbs |
| Levers: | L17 Lever |
| Operating Voltage: | 24VAC/DC |
| Amperage: | 350 mA |
| Power Consumption: | 8 watts |
| Solenoid Coil Resistance: | 69 Ω |
| Certifications: | ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
