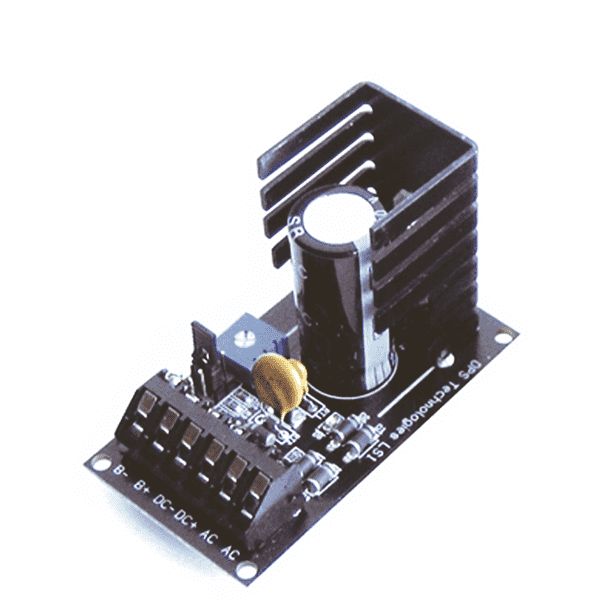

Camden CX-PS13 V3 - Variable Output Linear Power Supply

SLK-CMD-CX-PS13V3
Item number: 6886

Camden's low cost CX-PS13 linear power supply is designed to provide regulated low voltage power for electrified locks, MProx card access systems, washroom control packages and other electronic devices. A 120 VAC transformer with a 6 to 26 VAC output is required.
Applications: Recommended for use with electric strikes

• Low cost linear power supply
• Compact board-only design
• Self-resetting smart fuse protection
• Input voltage: 6-26 VAC, depending on output voltage selected
• Input voltage transformer required, see manual for specification
• 3 year warranty

Specifications:

Voltage:	6-26 VAC
Output Voltage:	6, 12, 24 VDC Selectable or 2-24 VDC (if ADJ is selected)
Output Protection:	PPTC Resettable Fuse
Output Power:	800 mA, 200 mA Charging Current
Ripple
Efficiency:	12 VDC = 85% 24 VDC = 90%
Dimensions:	2-3/4"L x 1-1/2"W x 1-3/4"H (69mm x 38mm x 46mm)

Manuals

• CX-PS13V3_Manual_R1 pdf 0.21 DOWNLOAD
