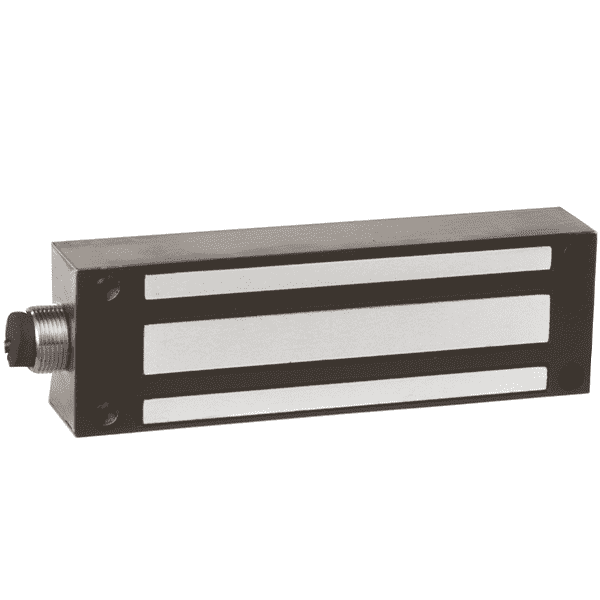

Camden CX-94S-12LS - Surface Mount Gate Lock - 1200 lb Holding Force - Built-in Lock Sensor & Relay - 12/24 VDC
Camden CX-94S-12LS - Surface Mount Gate Lock - 1200 lb Holding Force - Built-in Lock Sensor & Relay - 12/24 VDC
Camden
Precio habitual
$273.23 USD
Precio habitual
$453.02 USD
Precio de oferta
$273.23 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SLK-CMD-CX-94S-12LS
Item number: 6891
Camden CX-94S-12LS gate locks are rugged magnetic locks designed for outdoor applications. They offer exceptional performance and value with ultra low current draw, making them the ideal choice for most gating projects
- 1,200 Lb. holding force
- Compatible with all access/egress systems
- Field selectable 12/24 VDC operation
- Conduit fitting for weather resistant installation
- Built-in lock sensor and relay
- Lifetime warranty
Specifications:
| Voltage: | 12/24 VDC |
| Current Draw: | 500 mA @ 12 VDC 250 mA @ 24 VDC |
| Temp Range: | 5°F to 122°F (-15°C to 50°C) |
| Contact Rating: | Bond Sensor: 1 A @ 30 VDC |
| Dimensions: | 8" x 2-1/2" x 1-5/8" (203mm x 63mm x 41.5mm) |
Spec Sheets
- CX-94S-12LS_Spec Sheet pdf 0.25 DOWNLOAD
- Magnetic Lock Cross Reference pdf 0.14 DOWNLOAD
- CX-94S-12LS_Manual_R1 pdf 0.44 DOWNLOAD
