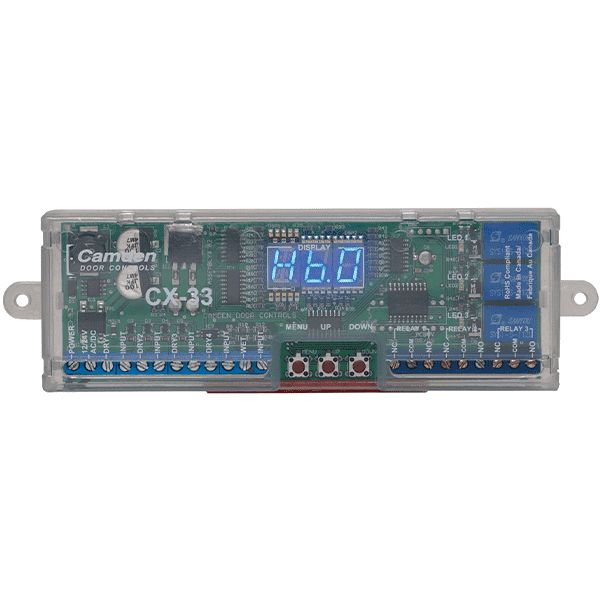

Camden CX-33 - Advanced Logic Relay - 12/24V AC/DC

Camden CX-33 - Advanced Logic Relay - 12/24V AC/DC

Camden

Precio habitual $89.25 USD
Precio habitual $181.38 USD Precio de oferta $89.25 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SLK-CMD-CX-33
Item number: 6893

Camden's CX-33 is a 'state of the art' logic relay designed to support virtually any automatic door application. The CX-33 features 15 operating modes, with sub-modes, and easy programming with large LCD display and push button selection.

Applications: Programmable modes include up to 3 door sequencing, airlocks, lock-out-relay, fire door in stairwells, and for control of automatic operators in restroom applications, with support of illuminated indicator of occupancy status.
  • Ideal for most automatic door applications, as well as air lock and other security applications.
  • Metal Cabinet w/ CX-33 and 2.5 Amp power supply available
  • 15 operating modes, with sub-modes. Selection and configuration with 3 push buttons
  • Easily sequence multiple inputs with multiple maintain and hold outputs.
  • Large 3 segment (blue) LED display
  • Selectable time delays, with delay on input activation
  • ‘Tried and true’ power circuitry ensures outstanding power filtering and surge protection.
  • Larger terminal strips allow larger wire gauge, or more conductors to be connected.
  • Clear plastic case provides better protection of circuit board and easy mounting.
  • 12/24V AC/DC
  • 3 year warranty

Specifications:



Voltage:  12 to 30V AC/DC
Current Draw:  105 mA Typical, 320 mA Maximum
Response Time:  .5 Seconds
Display:  Blue LED: 1 Alpha/Numeric and 2 x 7-Segment
Input:  4 x Dry
1 x Wet: min. 4.5V AC/DC
Output:  3 x Form C (SPDT)
Contact Rating:  3 A @ 24 VDC
Temp Range:  -22°F to +185°F (-30°C to +85°C)
Electrical Life:  100,000 Operations @ Rated Capacity
Time Delay:  Hold 1 timer: 0-50 Seconds
Delay 1 Timer: 0-15 Seconds
Hold 2 timer: 0-50 Seconds
Delay 2 timer: 0-60 Seconds
Hold 3 Timer: 0-50 Seconds
Delay on Activate: 0-10 Seconds
Dimensions:  2"L x 6"W x 7/8"H
(51mm x 152mm x 22mm)
Mounting:  2 x #6 Screws or Velcro


Spec Sheets
Reference Guides
  • CX-33_Product Comparison pdf 0.14 DOWNLOAD
  • Relay Selection Chart pdf 0.14 DOWNLOAD
Manuals
  • CX-33_Manual_English_R5 pdf 8.28 DOWNLOAD
  • CX-33_Manual_French_R5 pdf 14.40 DOWNLOAD
Promotion
  • CX-33_Advanced Logic Relay Presentation pdf 0.36 DOWNLOAD
