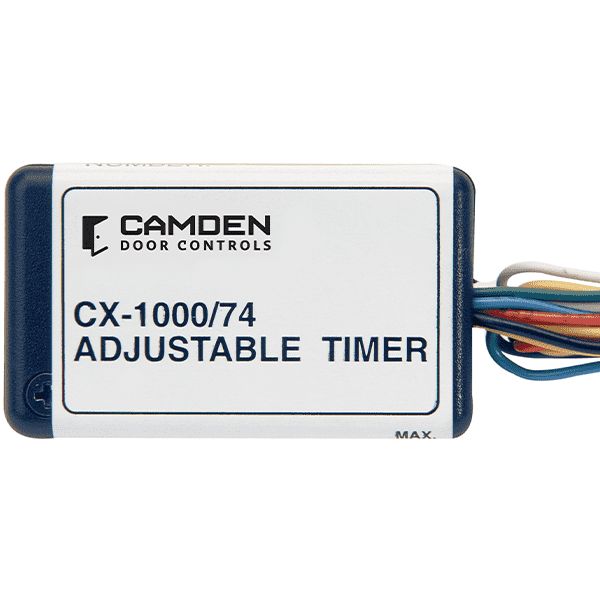

Camden CX-1000/74 - MicroMinder - Ultra Compact Adjustable Timer - 12/24V AC/DC

SLK-CMD-CX-1000/74
Item number: 6892

Camden's ultra compact and affordable CX-1000/74 is a flexible and easy to operate 'delay on release' timer. The delay time is adjustable from 1 to 30 seconds via a simple potentiometer.

Applications: Ideal for control of automatic door operators or de-energizing electrified locks such as strike or magnetic lock. Used where AC and DC operation is required or where an unprotected circuit board timer may be subject to damage.

• Ultra compact design
• Adjustable delay from 1-30 seconds
• Color-coded leads and plastic case
• 3 year warranty

Specifications:

Voltage:	12/24V AC/DC
Current Draw:	20 mA idle 33 mA operating
Response Time:	.03 Seconds
Input:	N/O dry contact
Output:	Form 'C' (SPDT)
Contact Rating:	3 A @ 24 VDC
Electrical Life:	100,000 @ Rated Capacity
Time Delay:	1 - 30 Seconds
Mounting:	Double Sided Foam Tape
Enclosure:	Black Styrene Plastic
