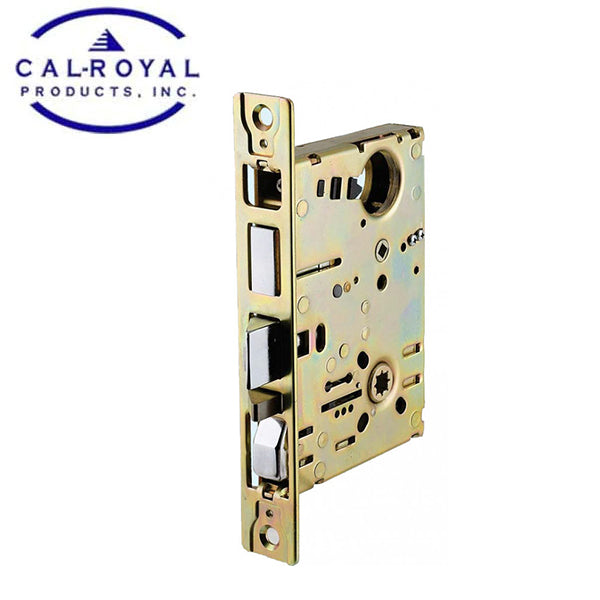

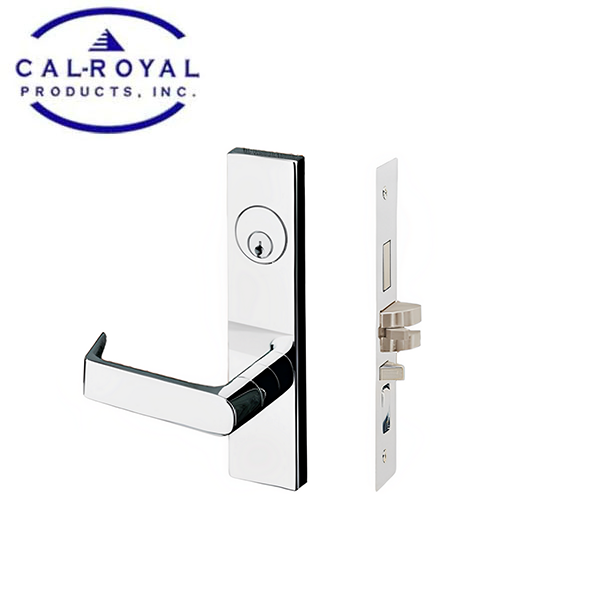

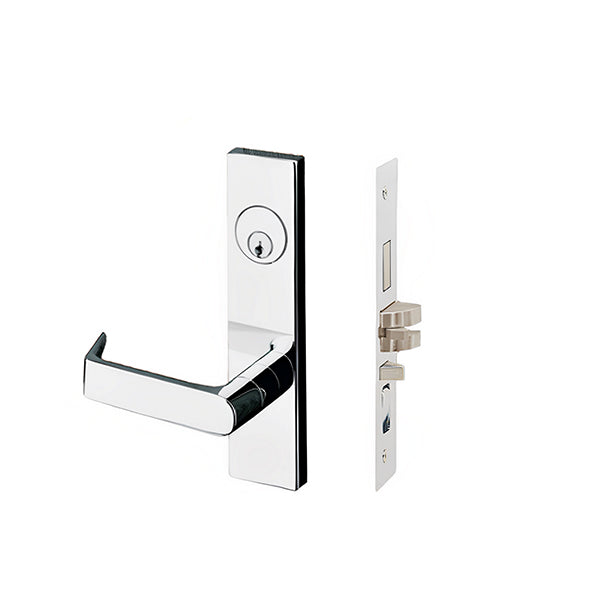

Cal-Royal - NM8080 - NM Series Mortise Lock - Heavy Duty - Storeroom Function - SE Escutcheon - 2 3/4" Backset - Satin Chrome - Fired Rated - Grade 1
Cal-Royal - NM8080 - NM Series Mortise Lock - Heavy Duty - Storeroom Function - SE Escutcheon - 2 3/4" Backset - Satin Chrome - Fired Rated - Grade 1
Cal-Royal
Precio habitual
$286.00 USD
Precio habitual
$343.20 USD
Precio de oferta
$286.00 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Features:
- For Doors - 1-3/4" thick
- Backset - 2-3/4"
- Lockcase - Heavy gauge zinc chromate steel
- Armored Front - Wrought brass attached by machine screws to lockcase front
- Handing - Handed. Easily field-reversible
- UL Listing - UL Listed “A” Label (3 hours), for use on fire doors, single or pair of doors. “F” mark stamped on strike
- ANSI/BHMA - Meets ANSI/BHMA A156.13, Series 1000, Operational & Security
- Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles.
Specifications:
| Function: | F07 - Storeroom |
| Door Thickness: | 1-3/4” (44.5mm) standard |
| Handing: | Field Reversible |
| Backset: | 2-3/4" (70mm) |
| Strike: | Brass, non-handed curved strike 4-7/8" x 1 1/4" |
| Lock Case: | Heavy gauge zinc chromate steel |
| Deadbolt: | 1" throw, brass, chrome plated with hardened steel rollers |
| Latch Bolt: |
Brass, chrome plated with heavy-duty deadbolt |
| Trims: | SE Escutcheon |
| Finishes: | 26D Satin Chrome |
| Fire Rated: | 3-hour fire door |
| Certifications: | Meets ANSI/BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceed 1,000,000 cycles |
