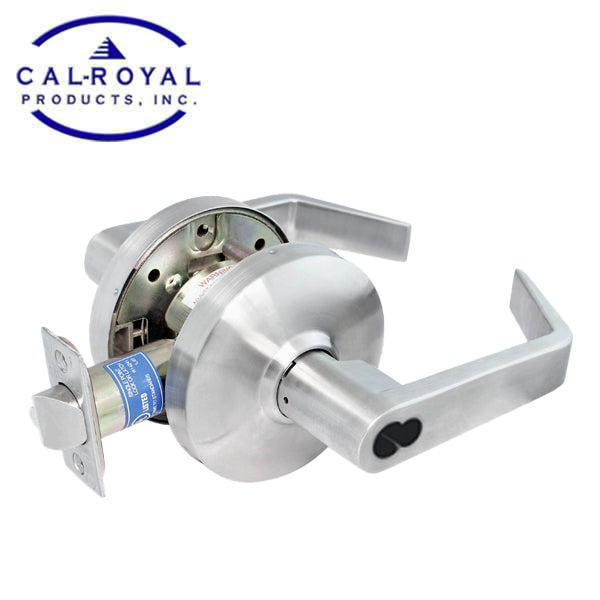

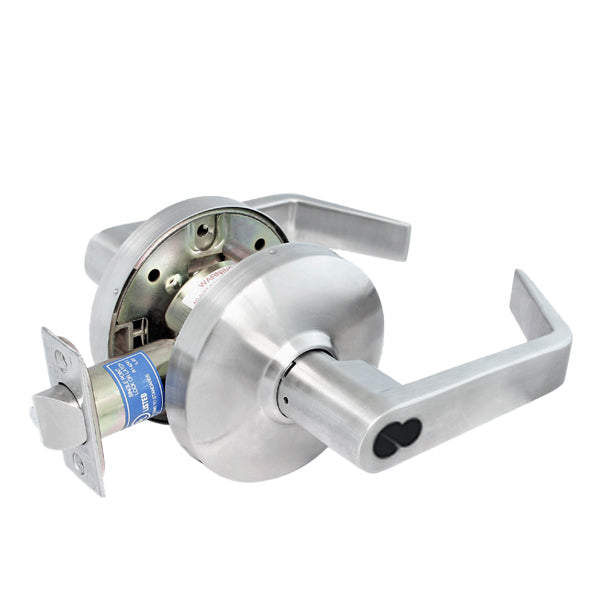

Cal-Royal - ICGN02 - Heavy Duty Cylindrical Lever Set - SFIC - Store Lock Function - Non-Clutch - Satin Chrome - Grade 1
Cal-Royal - ICGN02 - Heavy Duty Cylindrical Lever Set - SFIC - Store Lock Function - Non-Clutch - Satin Chrome - Grade 1
Cal-Royal
Precio habitual
$202.92 USD
Precio habitual
$243.50 USD
Precio de oferta
$202.92 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Cal-Royal GENESYS Series Heavy Duty Cylindrical Leverset, Non-Clutch, Double Cylinder. For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
Features:
- ANSI standard A156.2, GRADE 1, UL Listed
- BHMA Certified, Lifetime Warranty
- Free turning handle in the locked position, without retracting the latch to help prevent the breaking of handle
- Double Cylinder Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW
Specifications:
| Function |
F91 - Store Lock |
| Door Ranges | 1 ⅜” to 1 ¾” thickness |
| Backset | 2 ⅜” or 2 ¾” Adjustable Backset |
| SFIC | Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW |
| Lever | GN Design Lever |
| Latch Face Plate |
Standard 2 ¼” x 1 ⅛” for 2 ¾” backset |
| Bore |
1” Bore Diameter for Latch, 2 1/8” Diameter for Lock Housing |
| Strike | Round Corner Deadbolt Strike: 1” x 2 ¼” |
| Finish | US26D - Satin Chrome |
| Grade | Grade 1 |
| Certifications | ANSI Standard A156.2 |
| Manufacturer's Warranty | Lifetime Warranty |
Downloads
