Adams Rite - 4560 - Deadlatch Handle - Lever - RH or RHR - Aluminum - for 4300/4500/4900 Deadlatches

Adams Rite - 4560 - Deadlatch Handle - Lever - RH or RHR - Aluminum - for 4300/4500/4900 Deadlatches

Adams Rite

Precio habitual $48.76 USD
Precio habitual $88.09 USD Precio de oferta $48.76 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

LIST PRICE: $56.00

SLK-ADR-4560-601-130
Item Number: 6996

The 4560 Series Deadlatch Handles easily unlock the 4300, 4500 and 4900 Series Deadlatches. These handles fit solidly into the cylinder hole of Adams Rite deadlatches.

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles' escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.

More Details Below

  •

Features

Handle
ADA Compliant Handle of cast aluminum. ADA compliant lever is shaped to fit the hand, with a concave thumb-rest portion that tends to keep knuckles and thumb safely away from the jamb, even on a short backset narrow stile.
Handle Type Lever
Door Thickness 1-3/4" to 2"
Escutcheons  A 1/4" [6.4 mm] square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.

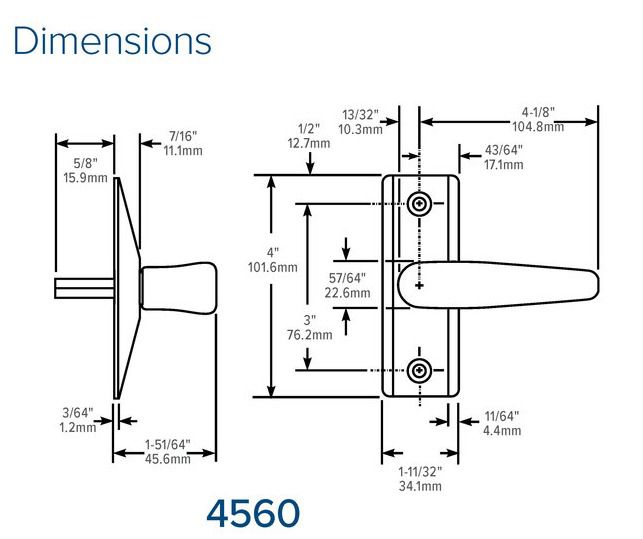

4560, 4565 use the same sloping 1-3/8" x 4" [34.9 mm x 101.6 mm] escutcheon, designed to match the clean lines of a narrow stile door.
Cam Plug

Secured in latch body by cylinder set screw, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.

Handing
Ordered for left hand (LH) or right hand (RH) door, but is easily reconfigured in the field to accommodate either door swing.
Finish 130 Aluminum


Download Installation Instructions Here
